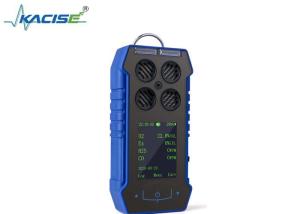

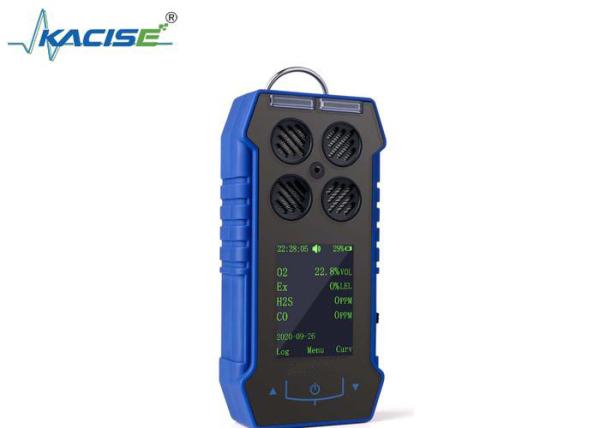

KMBH - 4S Sewage Treatment Plant Gas Detector

  • 1
  • 2
  • 3

Brand Name : KACISE

Model Number : KMBH-4S

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Accuracy : ≦±5% F.S.

Response Time : ≦30s

Indication : LCD displays real-time and system status;

Working environment : -20℃～50℃ for toxic gases

Power Source : DC3.7V Li-on battery, 1800mAh

Charging time : 6h~8h

Contact Now

KMBH - 4S Sewage Treatment Plant Gas Detector
Introduction
The KMBH - 4S Sewage Treatment Plant Gas Detector is designed to safeguard workers in sewage treatment plants. It can detect four gases simultaneously. Using the natural diffusion sampling method and high - sensitivity sensors, it accurately measures gas levels. The 32 - bit MCU enables high - reliability operation and self - adaptation to the complex environment of sewage treatment plants. The CSTN colorful LCD provides clear and intuitive status indications. Compact and lightweight, it’s easy to carry around the plant. With its waterproof, dustproof, and explosion - proof design, it can record 500 data points, which can be analyzed to improve plant safety management.
Product Features
* Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.
* 32-bit built-in MCU, high reliability and self-adaptation ability.
* Full functions, easy operation.
* CSTN colorful LCD, more intuitionistic, abundant and clear indication.
* Compact design, easy carrying.
* High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
*500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.
Technical Parameters

Gas sampling methodNatural diffusion
Accuracy≦±5% F.S.
Response Time≦30s
IndicationLCD displays real-time and system status;
Working environment-20℃～50℃ for toxic gases
Power SourceDC3.7V Li-on battery, 1800mAh
Charging time6h~8h
Working time≧8h continuously (without alarming)
Gas Sensor Life2 years
Explosion-proof gradeEx ib llC T4 Gb
WeightAppr. 400g (with battery)
Dimensions130mm×67mm×30mm(L × W × H)

Specifications

ModelRangeResolutionL-alarmH-alarm
CO0-1000ppm1ppm50ppm150ppm
O20-30%vol0.1%vol19.5%vol23.5%vol
H20-1000ppm1ppm50ppm150ppm
H2S0-100ppm0.1ppm10ppm20ppm
CH40-5%vol0.01%vol1%vol2.5%vol
C2H4O0-100ppm1ppm10ppm20ppm
EX0-100%LEL1%lel/1%vol20%LEL50%LEL
HC0-2%vol0.01%vol00
C2H6O0-100ppm1ppm10ppm20ppm
NH30-100ppm1ppm10ppm20ppm
CL20-50ppm0.1ppm5ppm10ppm
O30-20ppm0.1ppm5ppm10ppm
SO20-20ppm0.15ppm10ppm
PH30-20ppm0.1ppm5ppm10ppm
CO20-5%vol0.01%vol1%vol2%vol
NO0-250ppm1ppm50ppm150ppm
NO20-20ppm0.1ppm5ppm10ppm
HCN0-50ppm0.1ppm5ppm10ppm
HCL0-50ppm0.1ppm5ppm10ppm
HF0-10ppm0.1ppm3ppm5ppm
C7H8/C8H100-100ppm1ppm10ppm20ppm
