KMBH-4S Portable Multi Gas Detector Used In Places With Toxic Gases In The Mining Industry

Model Number : KMBH-4S

Certification : CE

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Brand Name : Kacise

Place of Origin : China (Mainland)

Accuracy : ≦±5% F.S.

Response Time : ≦30s

Indication : LCD displays real-time and system status;

Working environment : -20℃～50℃ for toxic gases

Power Source : DC3.7V Li-on battery, 1800mAh

Charging time : 6h~8h

Contact Now

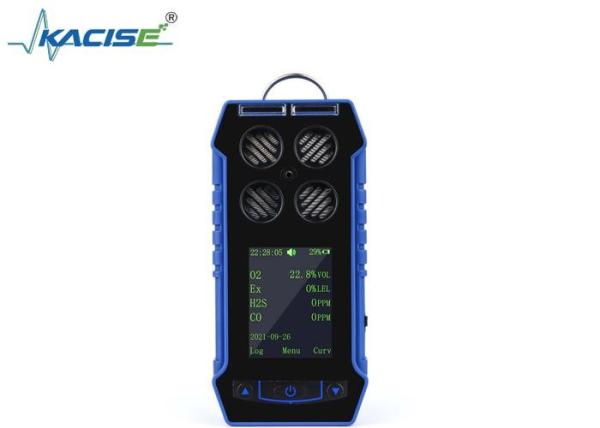

KMBH-4S Portable Multi-gas Detector
Introduction
KMBH-4S portable multi-gas detector could detect four gases at once time. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’life and avoid damage on the relevant equipments.

Technical Parameters

Gas sampling method Natural diffusion
Accuracy ≦±5% F.S.
Response Time ≦30s
Indication LCD displays real-time and system status;
Working environment -20℃～50℃ for toxic gases
Power Source DC3.7V Li-on battery, 1800mAh
Charging time 6h~8h
Working time ≧8h continuously (without alarming)
Gas Sensor Life 2 years
Explosion-proof grade Ex ib llC T4 Gb
Weight Appr. 400g (with battery)
Dimensions 130mm×67mm×30mm(L × W × H)

Product Features
* Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.
* 32-bit built-in MCU, high reliability and self-adaptation ability.
* Full functions, easy operation.
* CSTN colorful LCD, more intuitionistic, abundant and clear indication.
* Compact design, easy carrying.
* High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
*500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
