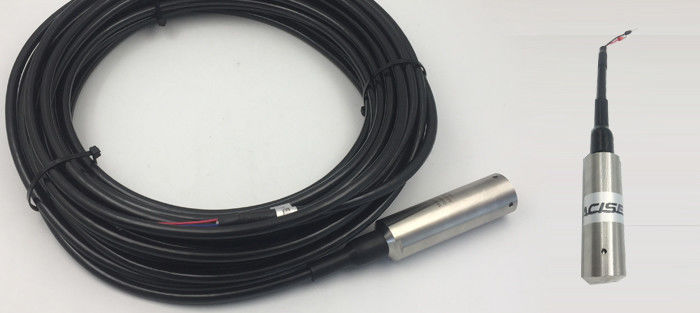

GXPS400 Water Level Sensor Probe CE Certified Water Level Sensor Industrial Level Measuring Instruments

  • 1
  • 2

Brand Name : Kacise

Model Number : GXPS400

Certification : certificate of explosion-proof, CE

Place of Origin : China (Mainland)

MOQ : 0-100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability : 1000 Pieces per Week

Delivery Time : 5-8 work day

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Accuracy : ±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Pressure range : 0~1...500mH2O

Overload pressure : 1.5times Rated pressure

Secondary containment : 3 times rated pressure

Output signal : 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc

Power supply : 24VDC, 11~30Vdc, or customized

Pressure interface : G1/4,input type

Operating Temperature : -40°C~85°C or -40 °C ~125 °C

Compensation temperature : -10°C~70°C

Contact Now

Factory Supply 4-20ma Generator Fuel Level Sensor Digital Water Pressure Sensor

1. Product Description

GXPS400 series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates. Customized solutions for various fluids can be supplied.

2. Parameter

Spec. Numerical value
Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature -40°C~85°C or -40 °C ~125 °C
Pressure range

0~1……500mH2O

9.8KPa…4900KPa

0.09bar…49bar

0.09atm…48atm

1.4psi… 711psi

2.8inchHg…1400inchHg
Overload pressure 1.5times Rated pressure
Secondary containment 3 times rated pressure
Compensation temperature -10°C~70°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Insulation >100MΩ@50V
Electrical Connections waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface G1/4,input type
Electrical properties 2 line 3 line 　
Output signal 4~20mA 0~5V 0~10V
Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω) >100kΩ
Response time 10ms
Electric strength 500Vac@1 second
Graduate Certificate Programs certificate of explosion-proof, CE
Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection air conduction resistance 8000V,case, cable conduction

3. Feature

  • Diffused-Silicon oil filled core
  • All kinds of structure to satisfy different users
  • Easy to use with submersible measuring
  • Reinforcing rib for liquid cable available
  • Intrinsically safe explosion proof, Isolation explosion proof, CE
  • Four layers of waterproof protection
  • Multiple pressure range and signal output
  • Non-polar 2 wire system current output
  • Can be used in lightning protection products

GXPS400 Water Level Sensor Probe CE Certified Water Level Sensor Industrial Level Measuring Instruments

GXPS400 Water Level Sensor Probe CE Certified Water Level Sensor Industrial Level Measuring Instruments

4. Application Field

  • Deep well level measuring
  • Hydrologic measurement for river, lake, sea
  • Sewage treatment
  • Circulating liquid consumption monitoring
  • Diversion project
  • Cloudy level measuring
  • Fluid reservoir level measuring
  • Water-saving irrigation
