Multi Parameter Water Quality Monitoring Sensor IP55 Protection

Name: Multi Parameter Water Quality Monitoring Sensor IP55 Protection
Brand: kacise
Price: 1 USD

Quality Multi Parameter Water Quality Monitoring Sensor IP55 Protection wholesale

Brand Name : kacise

Model Number : KMPW300

Certification : CE

Place of Origin : CHINA

MOQ : 0-100

Price : $0-$700

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100

Delivery Time : 3-10days

Packaging Details : Common package or custom package

Display/Resolution : 5-inch touch screen (color)/800*480

Controller Size : 235.5mm * 184.5mm * 110.6mm

Power Supply : (85 ~ 260) V AC, (9 ~ 30) V DC (to be customized)

Power Consumption : less than 8W

Storage Temperature : (-20 ~ 70)℃

Operating Temperature : (-10 ~ 60)℃

Contact Now

KMPW300 Multi-Parameter Online Monitor

1.Instrument Introduction

The Multi-parameter online monitor is composed of a controller, a pH sensor, a conductivity sensor, a dissolved oxygen sensor and a turbidity sensor...4 sensors can be connected at the same time, at the same time there are analog, digital, switch and other output interfaces. Sensor output RS485 signal, now

The anti-interferenceability is stronger when the field is applied.

Table 1-1 Instrument Configuration Information

Serial Number	Item	Note
1	Controller
2	PH Sensor
3	Polarographic Dissolved Oxygen Sensor	alternative
4	Fluorescence Dissolved Oxygen Sensor	alternative
5	Conductivity Sensor
6	Turbidity Sensor
7	Membrane cap + electrolyte 1 bottle	use for polarographic dissolved oxygen
8	Calibration cups	use for turbidity calibration

Table 3 Technical Specification of Controller

Display/Resolution	5-inch touch screen (color)/800*480
Controller Size	235.5mm * 184.5mm * 110.6mm
Power Supply	(85 ~ 260) V AC, (9 ~ 30) V DC (to be customized)
Power Consumption	less than 8W
Storage Temperature	(-20 ~ 70)℃
Operating Temperature	(-10 ~ 60)℃
Shell Material	PC, ABS
Protection Class	IP55
The Number of Sensors Supported	4 digital sensors
Analog Output	6 (0/4 ~ 20) mA analog output, maximum load of 500 ohms
Relay	6-way relay (120VAC,24VDC/1A)
Digital Output	1 RS485 output, 1 RS232 output

1.4 Controller Size

Multi Parameter Water Quality Monitoring Sensor IP55 Protection

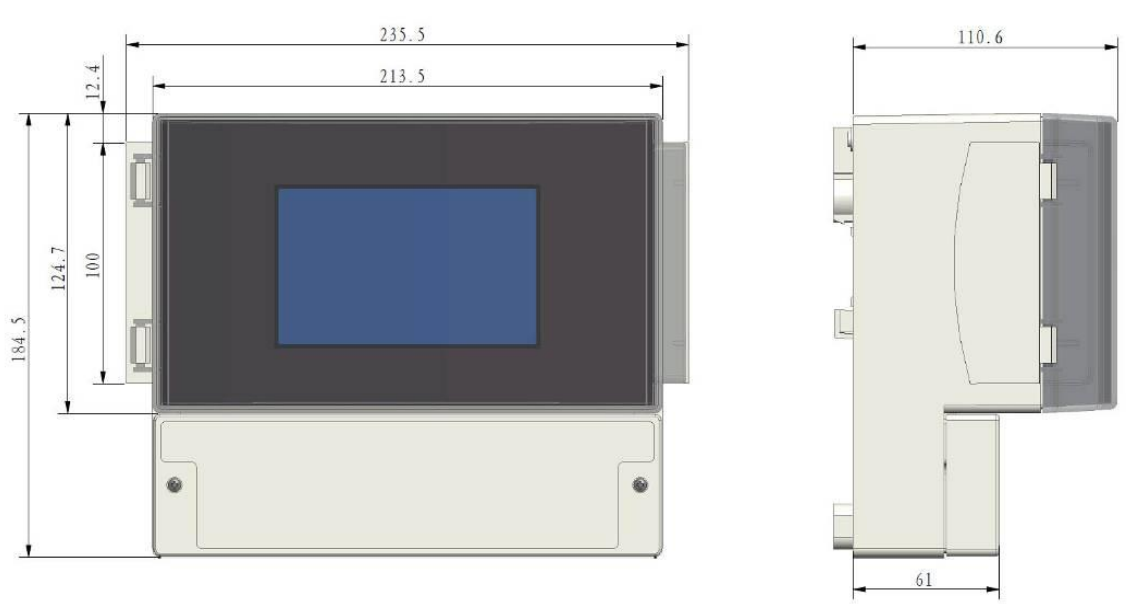

Figure 1-6 Controller Installation Size Diagram

1.5. Characteristics

adopt high-performance online electrode electrochemical industry, can work stably for a long time;
turbidity sensor using 880 - nm high-performance LED as light source, eliminate the influence of sample color;
turbidity sensor using the unique optical and electronic filter technology, eliminate the influence of environment on the measuring light;
turbidity sensor with functions of automatic cleaning brush cleaning, greatly reducing the workload of maintenance;
the built-in temperature sensor, real-time temperature compensation (0 ℃ ~ 60 ℃);
digital sensors, the standard digital signal output (RS485), strong anti-jamming capability, further transmission distance;
open communication protocols, can realize integration and networking, and other equipment;
analyzer is easy to operate, support software online upgrade.

1.6. Application

sewage, industrial wastewater treatment process and the discharge outlet water quality monitoring;
drinking water into the water and process water quality monitoring;
surface water and ground water monitoring.
