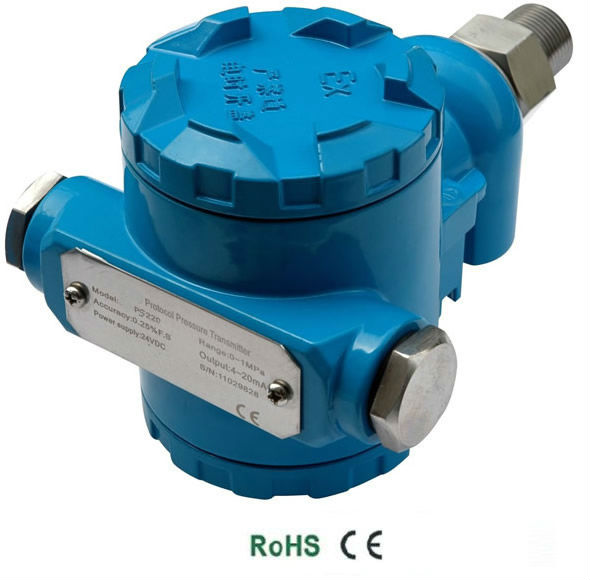

Hart protocol differential pressure transmitter
1. Specification:
| Spec. | Numerical value |
| Pressure range | 0~20kPa……60MPa |
| Overload pressure | 1.5 times tated pressure(1.5X) |
| rupture pressure | 3 times tated pressure(3X) |
| Accuracy | ±0.25%F.S |
| Stability | 0.2%F.S/Year |
| compensation temperature | -10°C~60°C |
| Working temperature | -40°C~85°C |

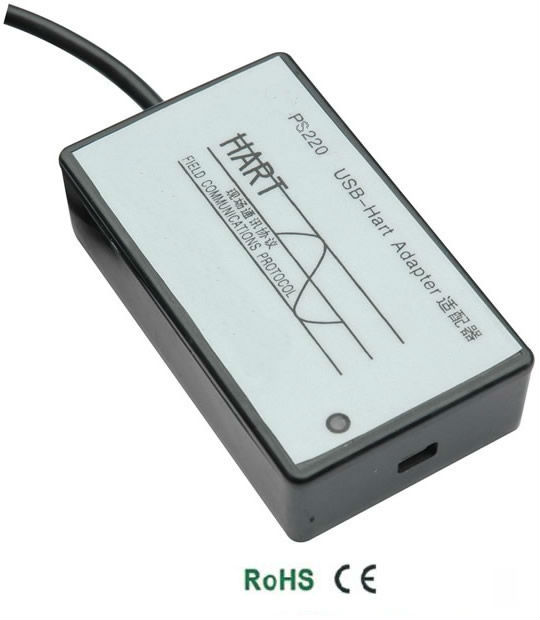

| Output signal | 4-20mA overlay HART Protocal |
| power supply | 12~30VDC |
| insulation | > 100MΩ @50V |
| Electrical Connections | connection terminal |

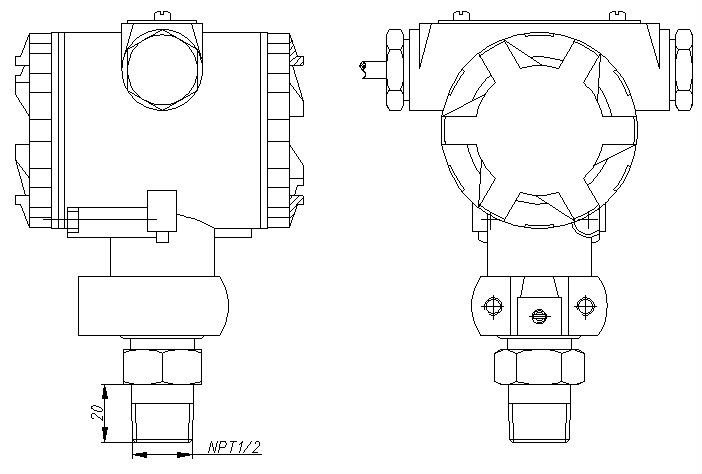

| pressure tap | M20×1.5,G1/2,NPT1/2,G1/4 |
| Presure type | pressure gauge,sealed Pressure gauge |
2. Electrical connection:
| Electrical connection |
| Wiring defining | terminal defining |
| power supply | + |
| Output | OUT |
 |
3. Feature:
1). Accuracy: ± 0.25F.S
2). Import high quality core
3). long transmission distance
4. Apllications
1). Aerospace
The aerospace industry encompasses the development, production, and maintenance of aircraft, spacecraft, and related systems and equipment. This sector is pivotal for both commercial and military applications, with its influence spanning air travel, space exploration, and defense.
2). Petrochemical
The petrochemical industry is a sector of the chemical industry that produces chemicals using petroleum and natural gas as raw materials. It is integral to the production of a wide range of products used in daily life, from plastics to pharmaceuticals.
3). Mining machinery
The mining machinery industry produces equipment used for the extraction of minerals and other geological materials from the earth. This equipment is critical for the mining sector, which supplies raw materials essential for various industries, including construction, manufacturing, and energy production.
I. The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.
II. The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,
III. Help our customer cut the cost obviously.
