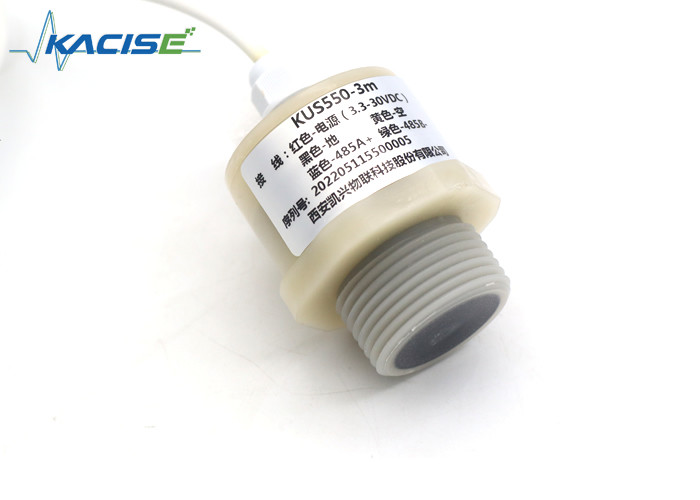

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

  • 1
  • 2
  • 3

Place of Origin : Shaanxi, China

Brand Name : KACISE

Model Number : KUS550

Packaging Details : carton or customers requests available

Supply Ability : 10000 Piece/Pieces per Week negotiable

Price : $50.00 - $180.00/pieces

Certification : CE

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Accuracy : 0.5%, 1.0%

Working current : ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;

Output signal : 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.

Ranging resolution : 0.1mm

Port : Shanghai or other

Temperature compensation : Yes

Supply voltage : 3.3 ... 30 VDC, ripple 10 %SS

Contact Now

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

1. Features

  • High sensitivity.
  • Compact and robust structure.
  • IP68 high protection rating.
  • Corrosion resistant casing, suitable for corrosive medium and application

2. Dimension

Unit in the diagram is mm.

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

3. Electronic interface and signals definition

Analogue output type wiring diagram

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

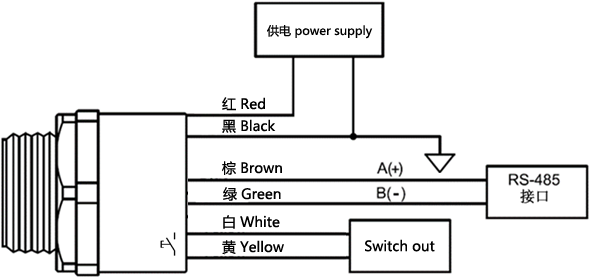

Switch output type wiring diagram
2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm
4.Applications

.Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial sensor

5. Parameter

General specifications

Model: KUS550
Measuring range

0.25m~3m (5m customizable)KUS550A

0.15m-0.6m(1m customizable)KUS550B；
Blind spot The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage 3.3 ... 30 VDC, ripple 10 %SS
Working current ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy ≤1 %F.S.
Temperature compensation Yes
Ranging resolution 0.1mm；

Working conditions

Working temperature -40…85℃ (233...358K)
Storage temperature -40…85℃ (233...358K)

Other instructions

Electrical connection 5-core cable (analog output), 6-core cable (switch output) .
Protection class IP68
Shell material PVC /PVDF/PTFE/ABS

Quality 2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm wholesale
