Dissolved CO2 Sensor In Water For Groundwater With Analog Voltage / IIC / UART / PWM / RS485 Output

  • 1
  • 2
  • 3

Model Number : KWS-5000

Place of Origin : Shaanxi, China

Brand Name : Kacise

Packaging Details : carton or customers requests available

Supply Ability : 1000 Piece/Pieces per Week

Price : $160.00 - $200.00/pieces

Certification : certificate of explosion-proof, CE

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 5-8 working days

Mounting Type : thread, submersible

Theory : NDIR infrared absorption

Operating Temperature : -20 to +60 ℃

Amplifier Type : Not Applicable

Measuring range : 2000ppm/5000ppm/10000ppm

Response time : 10 sec

Accuracy : ±20ppm/±50ppm/±300ppm

Protection level : IP68

Contact Now

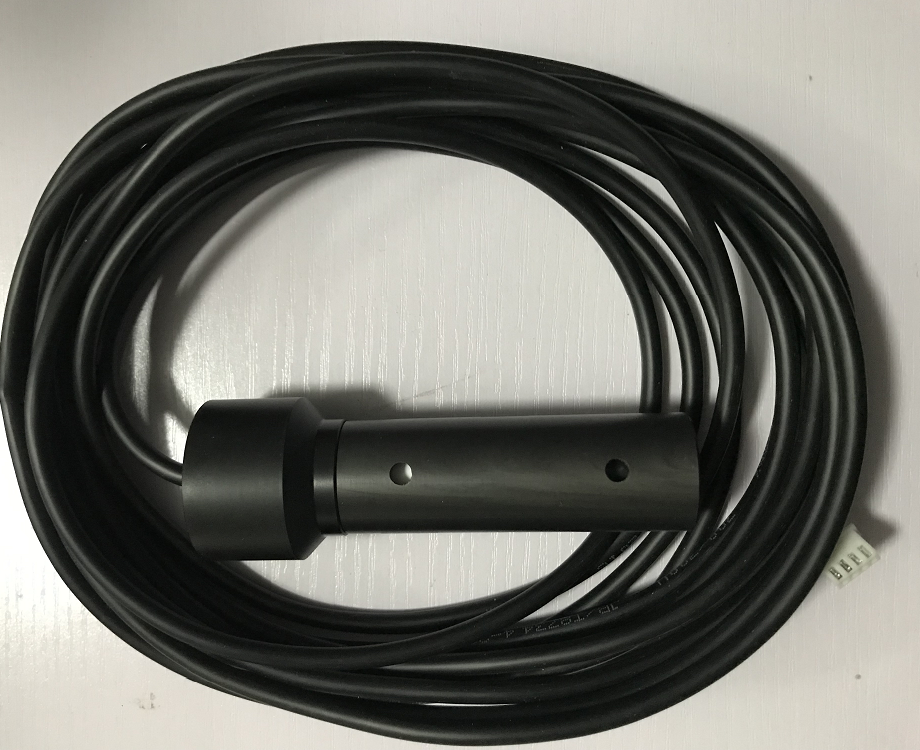

KWS-5000 Dissolved CO2 Sensor In Water

Introduction

The KWS-5000 is a gas detection module for detecting the concentration of carbon dioxide in an aqueous solution. Patented optical cavity, imported light source and dual channel detector for spatial double reference compensation. KWS5000 has good selectivity, anaerobic dependence and long life. It also has UART, IIC digital output, analog voltage output and PWM frequency output mode, which is convenient for customers to choose applications. The KWS5000 provides customers with zero calibration, sensitivity calibration and clean air calibration commands, and provides customers with manually calibrated MCDL pins.

Dissolved CO2 Sensor In Water For Groundwater With Analog Voltage / IIC / UART / PWM / RS485 Output

Feature

  • Convective diffusion ventilation and protective cover
  • Removable structure for easy cleaning of the sensor sleeve
  • Realizing spatial double-channel reference compensation
  • No oxygen dependence
  • Long working life

Specification

Item

Parameter

Principle

NDIR infrared absorption

Measuring range

2000ppm/5000ppm/10000ppm

Response time

10 sec

Accuracy

±20ppm/±50ppm/±300ppm

Protection level

IP68

Deepest depth

Underwater 60 meters

Temperature range

0 ~ 80°C

Output

Support RS-485, MODBUS protocol

Power supply

DC 5V

Size

Φ27*104.8mm

Probe cable length

Φ27*104.8mm

Probe cable length

10 m, customizable 5 m, 15 m and 30 m cable

cap life

1 year

Maximum working pressure

1.5bar

product material

POM

Dissolved CO2 Sensor In Water For Groundwater With Analog Voltage / IIC / UART / PWM / RS485 Output
